在线订购测量探头及附（配）件 0635 1024工业备件 提升效率

对于寻求可靠工业产品备件的客户而言,测量探头及附（配）件 0635 1024是理想之选. 凭借精密工艺和创新设计，该系列备件能有效解决各类行业客户的运行效率.

双辰仪器的核心优势?

原装品牌供应:提供覆盖所有应用场合的测量探头及附（配）件 0635 1024全系配件.

快速交付:国内多仓同时发货，即时获取测量探头及附（配）件 0635 1024备件.

高性价比: 以最优价格提供优质的测量探头及附（配）件 0635 1024工业产品.

专业可靠: 测量探头及附（配）件 0635 1024供应领域的可靠服务商.

立即订购测量探头及附（配）件 0635 1024,体验双辰仪器的优质服务!

商品类别：测量探头及附（配）件

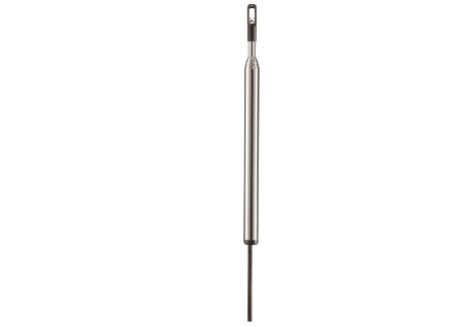

热线式风速探头，直径7.5mm，790mm伸缩手柄，含连接电缆

产品描述

Use the hot wire probe (thermal anemometer) to determine flow velocity and volume flow in ventilation ducts or at plate outlets and ventilation grilles. It is particularly suitable for low and medium flow velocities up to +20 m/s. The probe can also measure temperatures up to +70 °C at the same time.

The hot wire probe is equipped with a telescope, which can be extended to a maximum length of 820 mm. The small probe head diameter of 7.5 mm makes the probe ideal for use in ventilation ducts with small holes.

One particularly practical feature is the fact that the probe can be changed while the measuring instrument is switched on.

Intelligent calibration concept

The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be returned on its own (without the measuring instrument) for calibration. Calculating the determined calibration data in the probe generates a zero-error display.



产品包含



Hot wire probe (Ø 7.5 mm) with telescope (can be extended to 820 mm) including fixed plug-in head cable

NTC
测量范围	-20 ~ +70 °C
测量精度	±0.5 °C
分辨率	0.1 °C

热线
测量范围	0 ~ +20 m/s
测量精度	±(0.03 m/s + 5 %测量值)
分辨率	0.01 m/s

技术参数
Length telescope	820 mm
Probe head diameter	7.5 mm
